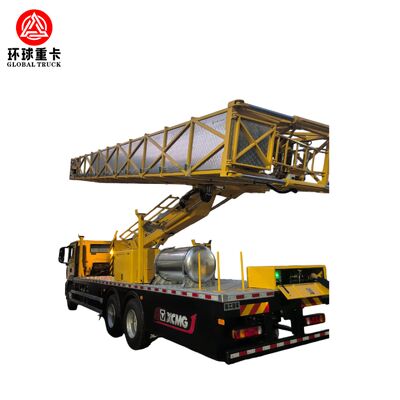

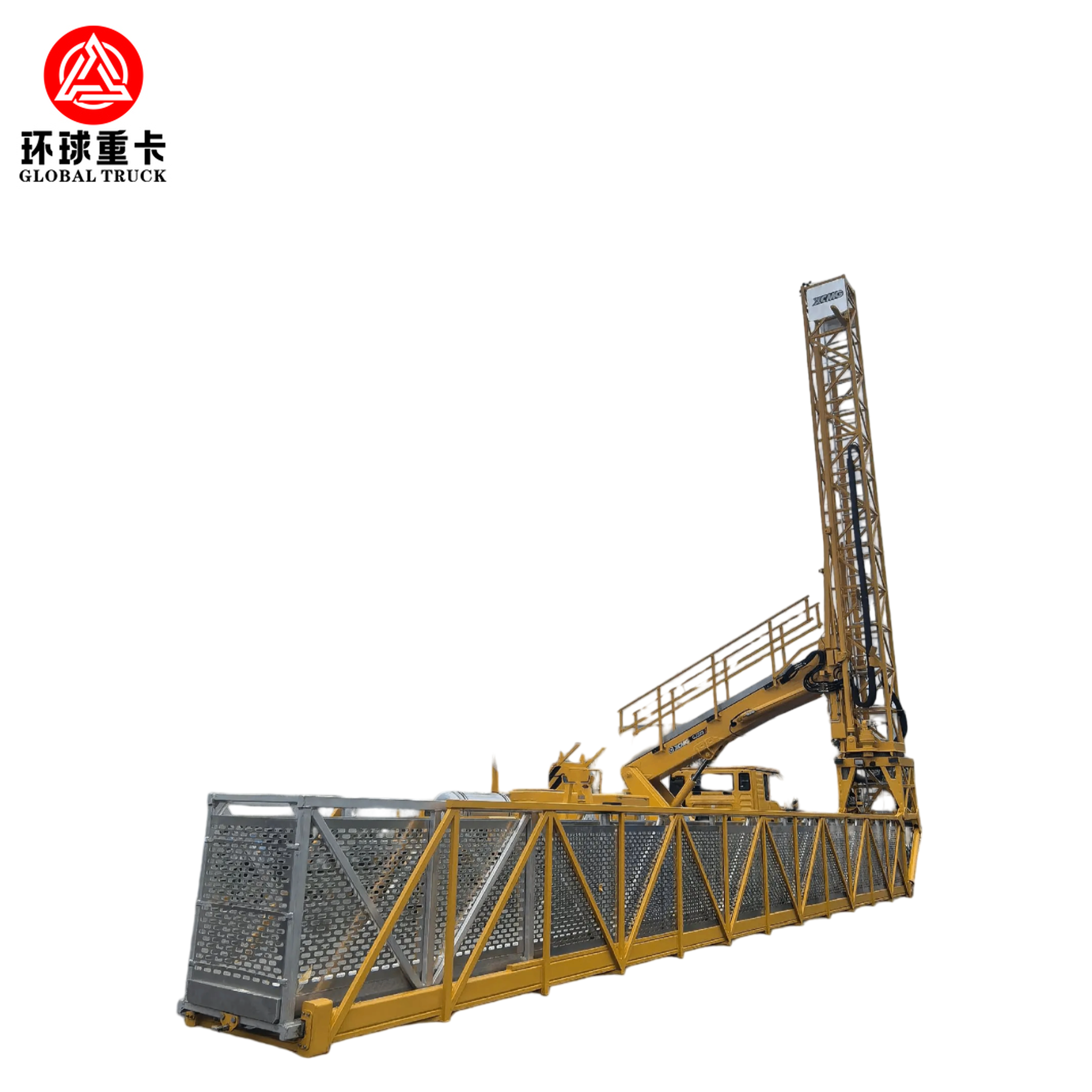

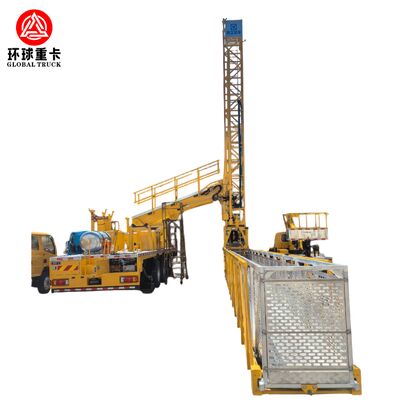

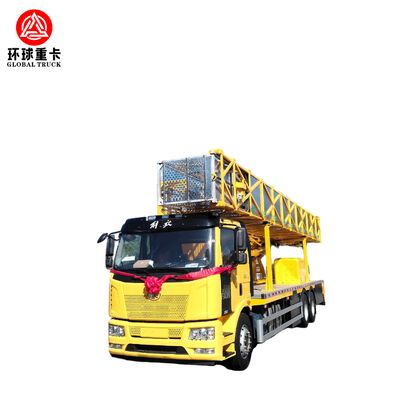

Advanced Hydraulic Bridge Inspection Vehicles for Infrastructure Safety
This bridge inspection vehicle combines a high-performance XCMG working platform with a reliable SINOTRUK chassis, designed for efficient inspection, maintenance, and repair of bridges, viaducts, and elevated structures. It offers excellent stability, safety, and maneuverability for municipal and infrastructure applications.
Key Product Features
Chassis (SINOTRUK)
- Brand: SINOTRUK (HOWO)
- Drive Type: 4x2 / 6x4 (optional)
- Engine: Weichai / SINOTRUK diesel engine (Euro II-Euro V optional)
- Horsepower: 266-420 HP
- Transmission: Manual gearbox (10-speed or 12-speed)
- Steering: Left-hand / Right-hand drive (customizable)
- Emission Standard: Euro II / III / IV / V (depending on target market)
- Heavy-duty frame suitable for extended boom load
Upper Structure (XCMG Bridge Inspection System)
- Brand: XCMG
- Working Platform Type: Telescopic / Folding arm system
- Maximum Working Reach: 12m - 20m (customizable)
- Platform Load Capacity: 200-400 kg
- Rotation: 360° continuous rotation (optional)
- Control System: Hydraulic + electric dual control system
- Stability System: Hydraulic outriggers with interlock protection
- Emergency System: Manual + hydraulic emergency lowering
Safety Features
- Anti-overturning protection system
- Emergency stop buttons on platform and ground
- Automatic leveling system
- Overload alarm and protection
- Non-slip platform surface
- High-strength guardrails
Hydraulic System
- Imported hydraulic valves and cylinders (optional brands)
- Smooth and precise operation
- Oil tank with cooling system
- High-pressure oil circuit with safety protection
Electrical System
- Centralized control panel
- Waterproof and dustproof wiring
- Remote control option available
- LED working lights for night operation
Applications
- Bridge inspection and maintenance
- Highway and urban overpass repair
- Viaduct structure inspection
- Municipal infrastructure maintenance
- Railway bridge inspection (customized versions)
Customization Options
- Working height and outreach adjustment
- Chassis brand selection (SINOTRUK, FAW, Dongfeng)
- Left-hand / right-hand drive
- Platform size and load capacity customization
- Emission standards for different countries
- Toolboxes, generator, welding equipment (optional)
Customer Feedback
Client A (Kenya - Municipal Contractor):
"The truck is very stable during operation. The XCMG working arm is smooth and easy to control. It helps us complete bridge inspections faster and safer than before."
Client B (Tanzania - Infrastructure Company):
"The SINOTRUK chassis performs well on rough roads. The structure is strong, and the hydraulic system is reliable even under heavy load."
Client C (Nigeria - Road Maintenance Company):
"We received the vehicle on time. The after-sales support was responsive, and the equipment meets our expectations for bridge maintenance work."
Client D (Philippines - Engineering Contractor):
"The platform is easy to operate. Our team quickly learned how to use it. Good value for the price."
Frequently Asked Questions
What is the maximum working height?
The standard working height ranges from 12m to 20m, depending on configuration. Custom heights are available.
Is the operation easy for new users?
Yes. The system is designed with user-friendly controls, and training can be provided.
Can the vehicle be customized for my country?
Yes. We can customize emission standards, steering position, and specifications based on your local requirements.
What kind of chassis is used?
We mainly use SINOTRUK (HOWO) chassis due to its durability and global service network.
How is the stability during operation?
The vehicle is equipped with hydraulic outriggers and anti-overturning protection to ensure maximum stability.
What is the delivery time?
Usually 30-45 days after order confirmation, depending on customization.
Do you provide spare parts and after-sales service?
Yes, we provide full spare parts support and technical assistance.
Why Choose This Model
- Strong and proven SINOTRUK chassis
- Reliable XCMG upper structure
- High safety standards
- Easy maintenance and operation
- Competitive price with long service life
- Widely used in international markets
